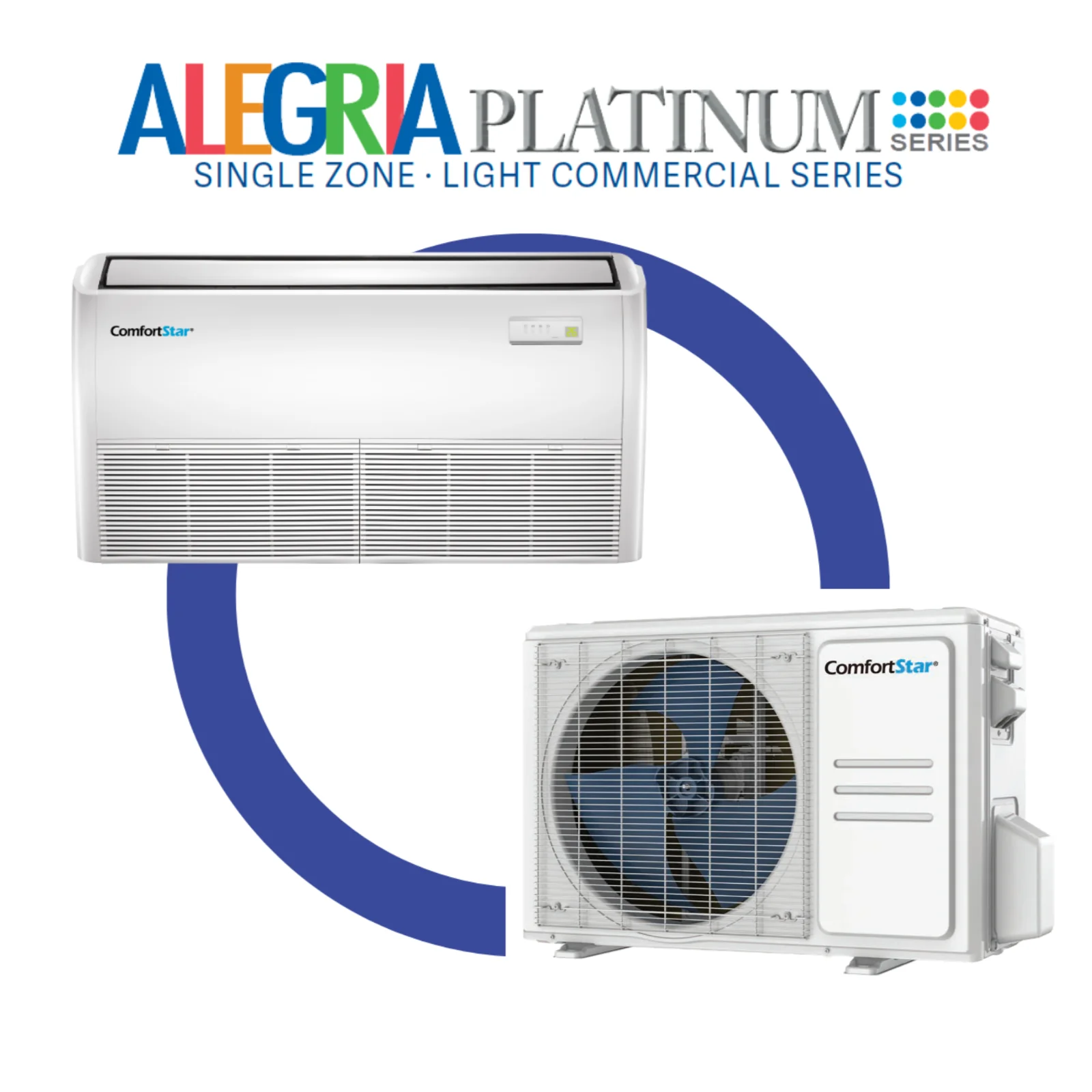

Refrigeración + calefacción de 36k: sistema tipo piso-techo comercial ligero de 208/230 v: 19 seer2
| Service Manual
Owners Manual & Installation Manual Submittals
|
SEER2: 19
EER2: 8.5 HSPF2-4: 9 HSPF2-5: 7 Max. Allowable Piping Length (ft): 213 Min. Allowable Piping Length (ft): 12 Max. Allowable Elevation Differences (ft): 98 Min. Power Supply Wire Size (AWG): 12*3 Min. Inter-Connecting Wire Size (AWG): 16*3, Stranded+22*2 Shielded Piping Size: 3/8″, 5/8″ Operating Mode: Heating and Cooling Outdoor Ambient Temperature: -13°F
|
Especificaciones
Unit Size – Inches (W x D x H):
Indoor – 50.59×26.57×9.25
Outdoor – 37.24×16.14×31.89
Voltage: 208-230V
Air Flow – CFM (Hi / Mi / Lo):
Indoor – 1036.47/917.06/637.65
Outdoor – 2117.7
Tonnage: 3
dB(A) Noise Level (Hi / Mi / Lo):
Indoor – 51.5/48.0/40.5
Outdoor – 65
Heat Capacity (BTU): 38000
Cooling Capacity (BTU): 36000
Placement: Aplicaciones Comerciales Ligeras
Breaker Size (A): 30
Factory Refrigerant Charge (ft): 25
Refrigerant Adjustment Factor (oz. per ft): 0.32
Drain Pipe Size (in): 3/4″
