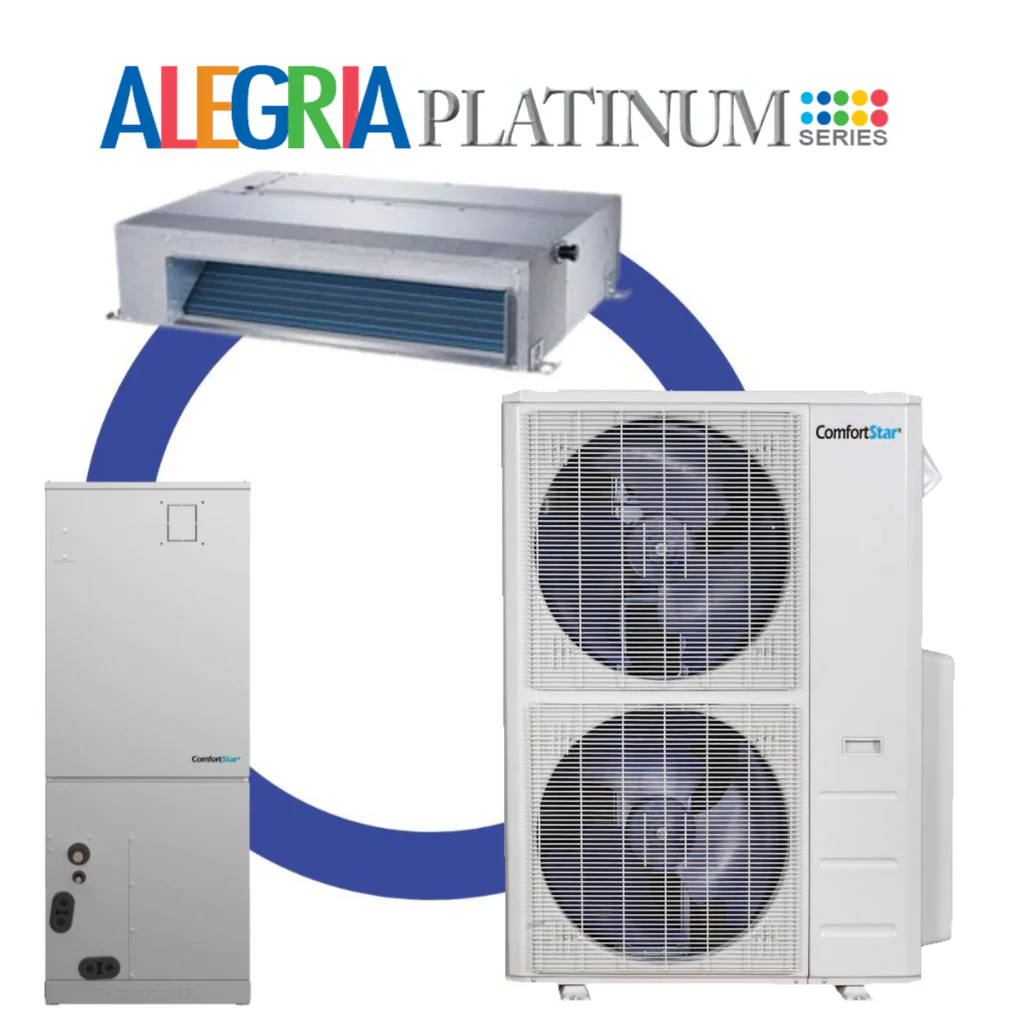

UNIDAD CONDENSADORA EXTERIOR DE 5 ZONAS 48K – SISTEMA DE CONDUCTOS 20.5 SEER2
SKU:
CMZ-54-5Z
CARACTERISTICAS PRINCIPALES
Unit Size – Inches (W x D x H):
Voltage:
Air Flow – CFM (Hi / Mi / Lo):
Tonnage:
dB(A) Noise Level (Hi / Mi / Lo):
Heat Capacity (BTU):
Cooling Capacity (BTU):
Placement:
Breaker Size (A): 50
Factory Refrigerant Charge (ft): 25*5
Refrigerant Adjustment Factor (oz. per ft): 0.16
Drain Pipe Size (in): refer IDU
SEER2: 20.5
EER2: 10.8
HSPF2-4: 9.7
HSPF2-5: 7.2
Max. Allowable Piping Length (ft): 98 for 1 IDU 246 for sum up
Min. Allowable Piping Length (ft): 9
Max. Allowable Elevation Differences (ft): 33 for ODU higher than IDU, 49 for ODU lower than IDU, 33 between IDU and IDU
Min. Power Supply Wire Size (AWG): 10*3
Min. Inter-Connecting Wire Size (AWG): 16*4, Stranded
Piping Size: (1/4″/3/8″)*3& (1/4″/1/2)*2
Operating Mode: Heating and Cooling
Outdoor Ambient Temperature: -13°F
Flex-mount Multi-zone Heat Pump Outdoor Units 9,000 – 36,000 Btu/h – FEATURES: • Inverter Technology • Factory Pre-Charge (25 ft.) • Ambient Operation to -13°F • Connect Up To 5 Zones • Self-Diagnostics • High Efficiency Inverter Technology • Simple installation.
Available Indoor Units:
– Fan Coil
– AHU
